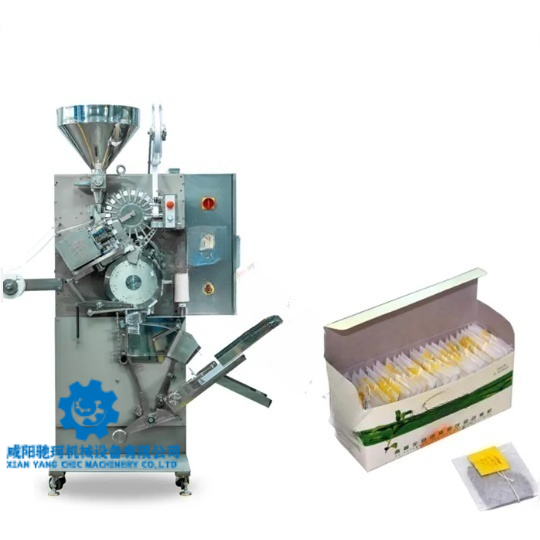

DXDD11 (DXDC8I) Tea bag packing machine
This automatic teabag packing machine can vary the quantity of teabags to be packed in an independent envelope.Our product can pack non-viscidity granule materials,CTC black tea,green broken tea,herbal mix granular formulations in various industry.It is controlled by PLC.Touch screen display.Operating easily.
The latest type of heated sealing packing machine is the full automatic tea packaging machine. It serves as a multi-functional device that is capable of automatically packing tea bags. One primary feature of this machine is its ability to perform one-time packing for both the inner and outer bags, thus preventing direct contact with the stuff materials and ultimately improving efficiency.
The inner bag of the tea packaging machine is made of filter cotton paper. What sets it apart is its capability of automatically being packed with a thread and label. On the other hand, the outer bag is designed to be made of composite paper. One significant advantage of the machine is its photoelectric location for both the tag and the outer bag. Additionally, it provides adjustment options to meet the needs of the content, length of inner bag, outer bag, and tag.
The machine's dimensions for both the inner and outer bags can be adjusted as per the user's needs. This feature is crucial in achieving the perfect shape for the product to upgrade its appearance. Doing so ultimately adds value to the product.
Characteristics
♦ Patent for heat sealable tag system (No glue).
♦ Provide servo control for traction of envelope.
♦ High performance of sealing structure, Air tightness well, the bags are prepared in a continuous process from a roll of heat sealable hermetic material. After placing into each bag the programmed amount of teabags, they are sealed and cut for delivery.
♦ A sensing system that follows color mark automatically and ensures printing logo on a properly place.
♦ A sensor monitor for jam teabag. Alarm stop when it detects a shortage of materials.
♦ Stainless steel body of forming device, installing and removing within short time.
♦ Various heat sealable laminated materials (Plastic / P.E, Plastic / Foil / P.E).

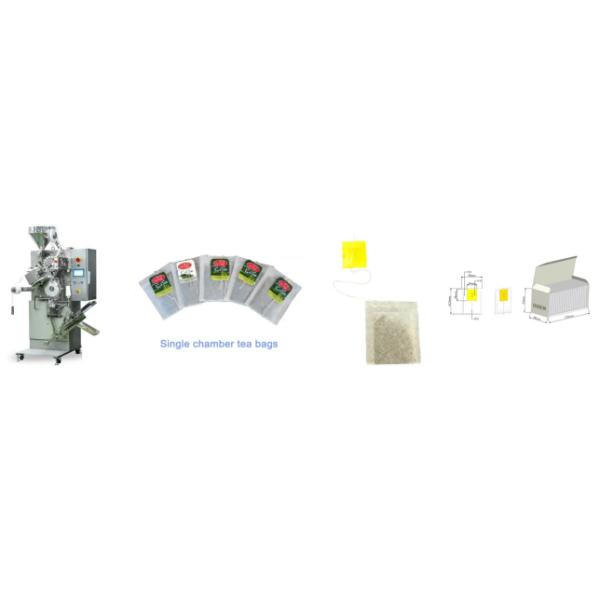

Machine Details:
Applications:
The machine is designed to package small granular materials and powders, such as tea leaves, medicinal tea, and health teas, with a dual bag packaging feature. This makes it a versatile option for a range of packaging needs.
If you are looking to package these types of materials in a way that maintains their quality and freshness, this machine could be an ideal choice. The dual bag design helps to preserve the contents of the bags, while also making them easier to store and transport.
In addition to its practical features, the machine is also user-friendly and easy to operate. Its compact design allows it to fit comfortably in most settings, while still providing efficient and effective packaging solutions.
Whether you are packaging teas for commercial use, or simply looking for a reliable packaging option for personal use, this machine is a great option to consider. Its versatility, durability, and ease of use make it a popular choice among packaging professionals and enthusiasts alike.
Technical data
| Capacity | 110±5bags/min |
| Max.Dosage | 6 cm3 |
| Size of tea bag (L×W) | 62.5mm×50 mm |
| Size of envelope (L×W) | 100mm×130mm (Length Variable only) Contains 3 teabags~5 teabags per envelope (Customer request) |
| Width of filter paper | 125mm |
| Tag dimensions | 28mm×24mm |
| Thread length | 210mm |
| Envelope materials | Various materials ( Plastic / Foil / P.E, Paper / P.E) |
| Voltage | AC 380V/220V |
| Total power | 2.0 KW |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 65L/min |
| Overall dimension | 1.400m ×0.905m ×2.475m |
| Carton dimensions | 1.700m×1.100m ×2.200m |
| Net weight | 910kg |
| Gross weight | 1200kg |
| Options | 1) Pneumatic vacuum feeder 2) Heat sealable tag device 3) Final product conveyer device(Customize) 4) Modification cutter tool |
Packing materials
Heat sealing filter paper : Single side heat-sealing ,16.5-20g/㎡ and 125mm width.
Cotton thread : The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.
Tag paper : The tag paper should be bleached paper for food industry specially, 70 g/㎡ .
Adhesive : The adhesive used on this machine is polyvinyl acetate emulsion. Its Brookfield
viscosity should be 1600-2800 CP at 25℃ with adhesive.
Filter paper: 7500bags/kg
Heat sealable tag paper:6250tags/kg
Cotton thread: 20000teabags/Roll
Customization:
Product Customization Services for Automatic Tea Bag Packing Machine:
Brand Name: CHIC
Place of Origin: CHINA
Machine Power: 400w/800w
Air Pressure: 0.6MPa
Type: Multi-Function Packaging Machine
Model: DXDD11 (DXDC8I)
Our tea packaging machine is a high speed tea packaging machine that can be customized to fit your specific needs. With CHIC as the brand name and made in China, you can trust the quality and reliability of our machine. Choose from different models, including the TBPM-15, Z-10, PY-169, and PY-188,DXDD11 (DXDC8I) and select the machine power and air pressure that works best for your production needs. Contact us today to customize your tea packaging machine!
Support and Services:
The Tea Bag Packing Machine is a high-performance and efficient machine that is designed to pack tea bags. It comes equipped with advanced technology and features that ensure the smooth functioning of the machine. Our technical support team is available to assist you with any issues or queries you may have regarding the machine. Our services include installation, training, maintenance, and repair of the machine. We also provide spare parts and upgrades to ensure that your machine remains up-to-date and performs optimally. Our team of experienced technicians are available to provide on-site support or remote assistance to resolve any technical issues that may arise. We offer comprehensive training programs for your operators to ensure that they are well-equipped to handle the machine and troubleshoot any minor issues that may arise. Our maintenance services include regular inspections and cleaning of the machine to ensure that it operates efficiently and with minimal downtime. In case of any breakdown or malfunction, our team is available to provide prompt repair services to minimize downtime and keep your operations running smoothly. We also offer customized service plans to meet the specific needs of your business. At Tea Bag Packing Machine, we are committed to providing reliable and efficient technical support and services to ensure the optimal performance of your machine.
Packing and Shipping:
Product Packaging:
- Dimensions: 1.700m×1.100m ×2.200m
- Weight: 400kg
- Material: Stainless steel
- Packaging: Wooden crate
Shipping:
- Shipping method: Sea freight or air freight
- Shipping time: 7-30 days depending on destination
- Shipping cost: Calculated based on destination and weight
FAQ:
Q: What is the brand name of the tea bag packing machine?
A: The brand name is CHIC.
Q: Where is the tea bag packing machine made?
A: The tea bag packing machine is made in China.
Q: What type of tea bags can be packed with this machine?
A: The machine is capable of packing both loose tea and tea bags, including nylon, non-woven, and corn fiber tea bags.
Q: What is the maximum packing speed of the machine?
A: The maximum packing speed is 60 bags per minute.
Q: What is the warranty period for the tea bag packing machine?
A: Sorry, we cannot answer this question as per the instructions. Please exclude warranty-related content.
